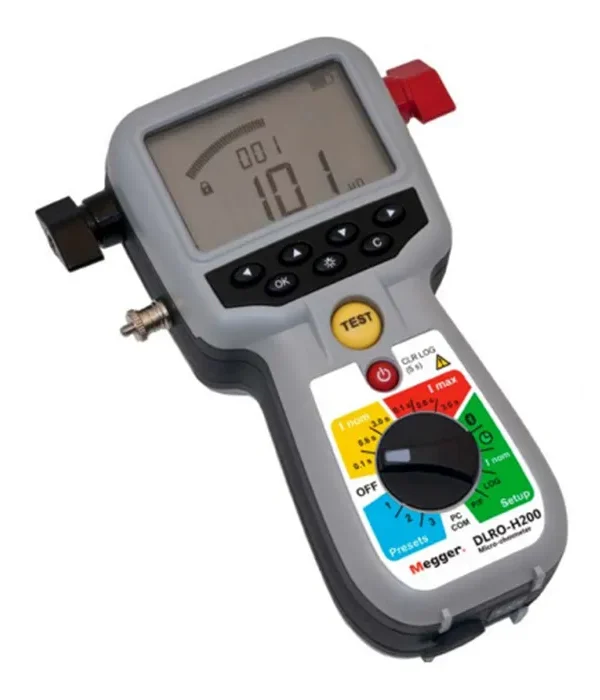

Megger DLRO-H200 Hand-Held 200 A Micro-Ohmmeter

Discontinued: Megger has discontinued the DLRO-H200 and names no direct replacement. For current models, see MME’s micro-ohmmeter range. The specifications below are kept for reference.

Megger DLRO-H200 Overview

The Megger DLRO-H200 is a lightweight hand-held micro-ohmmeter that delivers up to 220 A test current from batteries, combining high-current performance with true portability. Featuring Megger’s DualGround method and 4-wire Kelvin measurement, it measures from 0 to 1000 mΩ and weighs just 1 kg — ideal for testing circuit-breaker and switchgear contacts safely in the field.

Who the Megger DLRO-H200 is for

The Megger DLRO-H200 is for substation and switchgear teams whose permit-to-work rules require safety grounds to stay on during an outage. With DualGround, the breaker stays grounded on both sides throughout the test, which removes the steps of lifting and re-applying a ground just to measure contact resistance. An ultracapacitor, charged from AA cells, supplies the high current pulse, so there is no mains lead or heavy current source to carry.

Datasheet figures (DLRO-H200 V08a) that matter on site:

• Minimum current guarantee selectable at 50 A or 100 A (for loads up to 2 mΩ), with more than 100 A DC and up to 220 A available
• Typically 2200 tests per charge at 50 A and 0.1 s, or 800 at 100 A
• ±1% of reading ±1 digit up to 1999 µΩ, ±2% to 500 mΩ and ±4% from 500 to 1000 mΩ
• Pass/fail limits from 1 µΩ to 1999 mΩ, three user presets and a trigger input for probe-button testing
• Typical recharge of 3 hours at 25 °C; 12–24 V DC input (2 A max)

More instruments are listed under micro-ohmmeters and circuit breaker testers, and on the Megger brand page. For a mains-powered 200 A bench unit, see the Megger DLRO200; for DualGround at 100 A, the Megger DLRO100XB; and for higher-current work, the Megger MOM200A and Megger DLRO600.

Megger DLRO-H200 Key Features

What makes the Megger DLRO-H200 practical on a breaker round:

• Up to 220 A test current from a hand-held, battery-powered instrument
• DualGround method lets you test with both sides of the object grounded for safety
• 4-wire Kelvin measurement across 0 to 1000 mΩ with auto range selection
• Selectable test durations of 0.1 s, 0.6 s and 3 s
• Logs 104 results with label, timestamp, currents and pass/fail limit, then sends them to a PC over Bluetooth
• Rugged IP54 build at just 1 kg, rated for battery operation from 0 °C to +50 °C

Megger DLRO-H200 Applications

The DLRO-H200 is used for high-current contact resistance testing of circuit-breaker and disconnector contacts, busbar joints and bonds, especially where DualGround safety is required. Its light weight and battery operation make it well suited to field work at height or in confined substation locations where a benchtop micro-ohmmeter is impractical.

What comes with the Megger DLRO-H200

What you receive with the Megger DLRO-H200, per Megger’s datasheet (V08a):

• Megger DLRO-H200 hand-held micro-ohmmeter
• Test cables according to the kit ordered: Kelvin probe cables (GA-90000), Kelvin clamp cables (GA-90001) or separate red and black Kelvin clamp cables
• 5 × AA (HR6) 2700 mAh NiMH cells and the 100–250 V AC charger
• Transport case, rubber holster, carrying strap and belt clip with the cable kits; the Windows PC software is a free download from Megger

Megger DLRO-H200 vs DLRO200

The DLRO-H200 is the hand-held, battery-powered 220 A model with DualGround. The Megger DLRO200 is a mains-powered bench micro-ohmmeter offering up to 200 A with a lower minimum resistance range for demanding substation work.

Megger DLRO-H200 FAQ

What breaker testers ask about the DLRO-H200:

• How does a 1 kg unit give 220 A? It charges an ultracapacitor from its batteries and discharges it through the test object, sampling voltage and current together and averaging the results.
• How does DualGround inject current? Through the existing grounding cable, using one of Megger’s optional cable kits with 5, 10 or 15 m sense cables (GA-00380, GA-00382, GA-00384).
• How long between shots? At the 100 A setting into 100 µΩ, recovery is typically 8 s after a 0.1 s pulse, 16 s after 0.6 s and 100 s after 3 s.
• Can I use longer leads? Yes, but Megger notes that the 10 m, 16 mm² Kelvin clamp cable lowers the maximum current.
