PCE PDA 100L Manometer

The Manometer PCE PDA 100L presents a sophisticated and reliable solution for professionals in need of accurate pressure measurements in gas and liquid applications. With its multiple pressure measuring functions, advanced display capabilities, and data logging feature, the PCE PDA 100L offers versatility and precision in pressure, temperature, flow velocity, and flow rate measurement.

SKU:63500

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 2,788 (excl.VAT)

16People watching this product now!

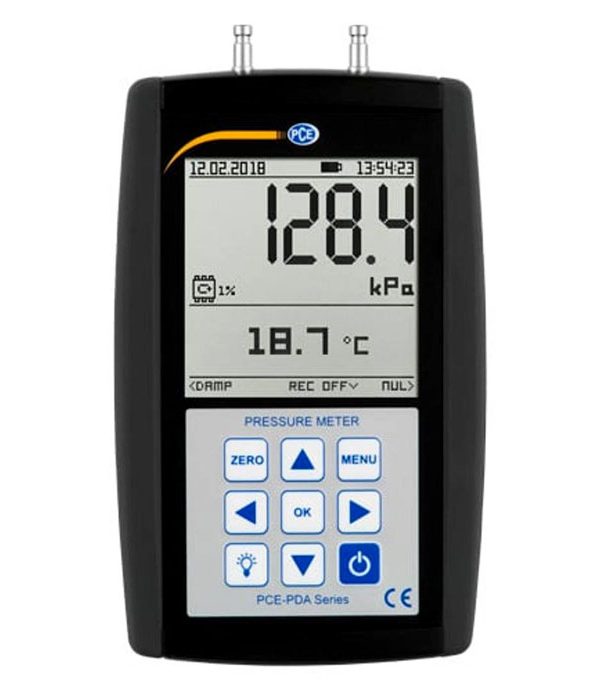

PCE-PDA 100L Manometer

For professionals seeking accurate and reliable pressure measurements for gases and liquids, the Manometer PCE PDA 100L offers a cutting-edge solution. This versatile digital pressure gauge is designed to measure pressure, temperature, flow velocity, and flow rate with precision. Available on the mme-ae website, let’s explore the features and capabilities of the PCE-PDA 100L that make it stand out as a top choice in pressure measurement technology.

Multiple Pressure Measuring Functions and Advanced Display:

The PCE-PDA 100L is equipped with over 16 pressure measuring units, catering to diverse applications in various industries. PCE PDA100L graphical display provides valuable insights, showing both maximum and minimum differential pressure readings. The high-precision mode enhances resolution, ensuring accurate and dependable results. Additionally, the PDA 100L features a data logger function, enabling leak tests and continuous data storage for later analysis.

Flexible Operating Conditions and Portability:

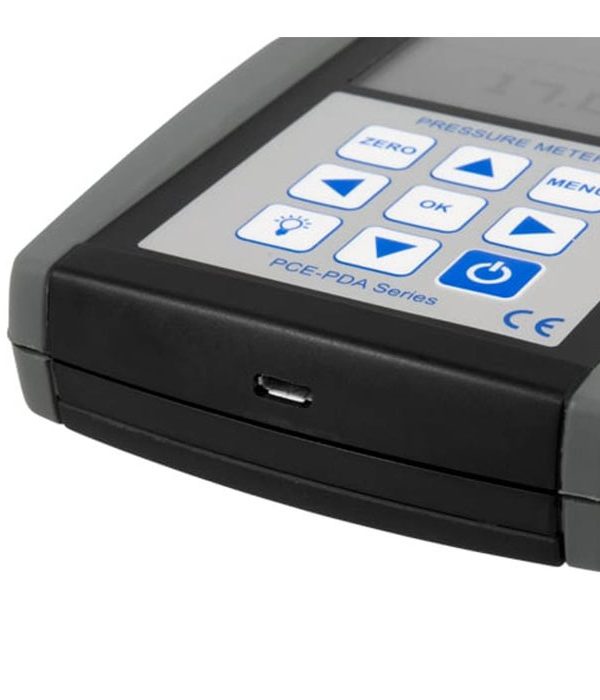

Ideal for measuring air and non-explosive gases, the PCE PDA 100L operates effectively within a temperature range of 0 to 50°C. Its IP41 protection ensures reliable performance in different environments. The device can be powered by 2 x 1.5V AA batteries or a USB adapter, offering flexibility and portability for on-the-go professionals. With a compact design and weighing approximately 285g, the gauge is easy to handle during measurements.

Comprehensive Package and Optional Accessories:

The PCE PDA 100L package includes the digital pressure gauge, 2 x 1.2V AA NiMh batteries, a USB power adapter, a Micro USB cable, and a user manual. To further enhance its functionality, various optional accessories such as tubes and pitot tubes are available, each with specific measurements and prices. Among these accessories is a pitot tube made of stainless steel, featuring a plug connection for seamless integration with measuring hoses.

Related Products

The PCE-HVAC 4 serves as a comparable alternative to the PCE-PDA 100L, offering similar features and functionalities while catering to specific user preferences and requirements.

More information

MME-AE is a renowned importer and distributor of Manometer in Dubai and various other countries, providing the most competitive prices in the market. For purchasing Manometer and obtaining detailed pricing information, we encourage you to get in touch with our knowledgeable experts at MME-AE.

PCE-PDA 100L Manometer Specifications:

  • Measuring range temperature: 0-50°C / 32122°F
  • Resolution: 0.1°C / 0.18°F
  • Accuracy: ± 1°C / 1.8°F
  • Measuring range pressure: -100-200 kPa
  • Resolution: 1 / 10 Pa
  • Accuracy: ± 0.5% of final value
  • Nominal pressure: 200 kPa
  • Overpressure: 300 kPa
  • Burst pressure: 400 kPa
  • Media: Liquids, air
  • Measuring rate: 10 Hz
  • Measurement units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
  • Pressure: Differential Pressure relative pressure (if neg. Pressure connection open)
  • Pressure connections: 5 mm nipple for quick connectors
  • Max, Min, and Hold function
  • Data logger: 1024 memory slots, 1 s-255 h Recording time per memory location, 1 s-24h recording interval
  • Medium: For air and non-explosive gases
  • Zero correction
  • Averaging: Between 0.1 … 9.9 s
  • Display: Graphic LCD with backlight
  • Protection: IP41
  • Power supply: 2 x 1.5V AA battery / 1.2V NiMh battery, 5V / 500-mA USB power adapter
  • Current consumption: 50-mA (with backlight), 10-mA (without backlight)
  • Operating temperature: 0-50°C / 32-122°F
  • Storage temperature: 10-55°C / 50-131°F
  • Dimensions: 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
  • Weight: About 285 g / < 1 lb
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “PCE PDA 100L Manometer”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Pce

PCE Instruments is a reliable brand that provides a wide range of high-quality measuring tools for industries such as laboratory testing, industrial manufacturing, and environmental monitoring. With a team of highly skilled engineers and scientists, PCE Instruments develops innovative products in-house to ensure quality and precision. The brand has a world-class reputation for reliability, durability, and accuracy.

pce logo brand3

Datasheet

Datasheet

Datasheet

Specifications

Manometers
Connector

5 mm nipple for quick connectors

Pressure(Range/Resolution/Accuracy)

-100-200 kPa/1 / 10 Pa/± 0.5% of final value

Mechanical and General Specifications
Dimensions

145 x 85 x 35 mm

Weight

285 g

Power

1.5V x 2

Operating temperature

0-50 °C

Storage temperature

-10°C to 50°C

Measurement Unit

Pa, hPa, kPa, MPa, mbar, bar
