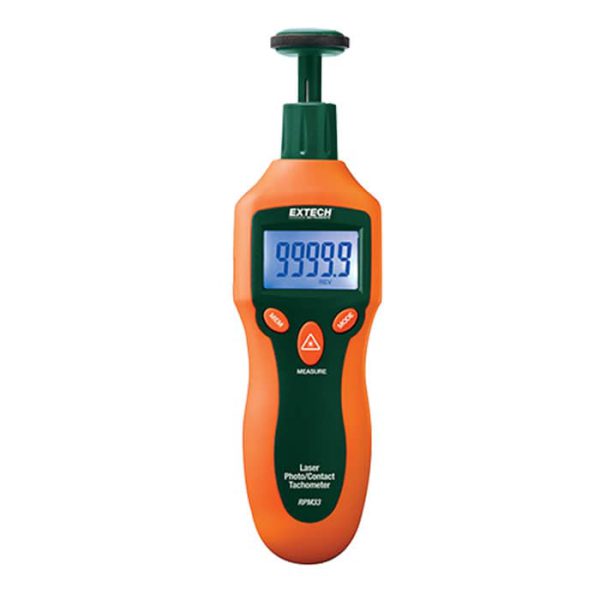

EXTECH RPM33 Combination Contact,Laser Photo Tachometer
Brand:
Extech
SKU:
8468
EXTECH RPM33Combination Contact,Laser Photo Tachometer Key Features :
- Large 5 digit backlit LCD display
- Microprocessor based with quartz crystal oscillator to maintain high accuracy
- Store/recall 10 data sets in memory with 4 parameters (measurement, max, min and average)
- Wide RPM (photo and contact) and Linear Surface Speed/Length (contact) measurements
- Laser guided for greater distance non-contact measurements up to 1.6ft (500mm)
- Complete with contact wheel for rpm or linear surface speed/length, 9V battery, reflective tape and soft case
- Safe Buy
- Fast Delivery
- Original Guarantee
- Online Payment
Description
EXTECH RPM33 Combination Contact,Laser Photo Tachometer

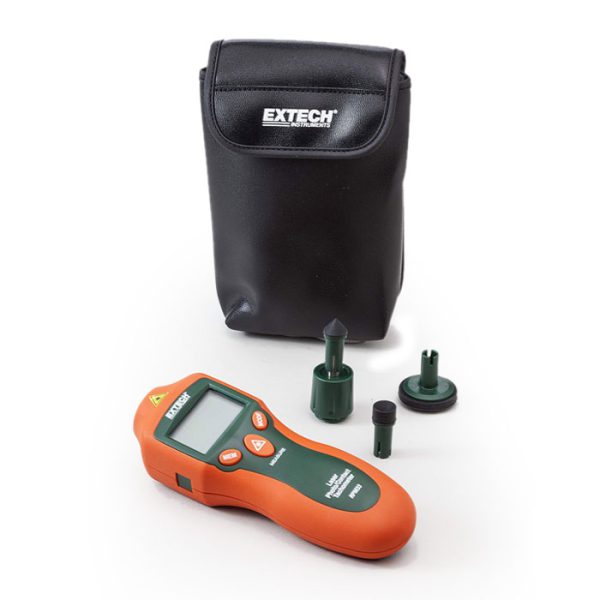

The RPM33 is designed for versatility, offering both touch (2 to 19,999 rpm) and non-contact (2 to 99,999 rpm) RPM measurements. For added safety, non-contact RPM readings can be taken from up to 1.6 feet (500mm) away. The large, backlit five-digit LCD displays the readings clearly. It can save and recall 10 data sets, each with four parameters: measurement, maximum, minimum, and average. The RPM33 includes a contact wheel for measuring linear surface speed (0.2 to 6560 feet/minute; 0 to 1999.9 meters/minute) or RPM. Accessories include a 9-volt battery, reflective tape, a carrying bag, and a user manual.
Laser photo contact tachometer
How do you use a laser photo tachometer?
To use the optical/photographic tachometer, a reflective target must be placed on the rotating surface to be measured. Usually this target is a small piece of reflective tape or a blob of reflective paint. Various pieces of tape can be attached to the shaft to aid in measuring slower speeds.
To use the laser tachometer Attach the reflective tape to any rotating object, aim the red tachometer light beam at the mark on the tape and within seconds you can read the RPM. It is widely used to measure the speed of motors, small engines, model airplanes, fans and blowers.
Contact,Laser Photo Tachometer
EXTECH RPM33 manual
EXTECH RPM33 multimeter manual and datasheet, It won’t matter much to those who know how to use a Tachometer, but new users can have a hard time. However, most of it is self-explanatory and you also have the online manual to refer to if you get stuck.
EXTECH RPM33 Specifications
| Category | Specification |
| Range (rpm) | 2 to 99,999 rpm, 2 to 20,000 rpm |
| Surface Speed | 0 to 78,720 inches/min, 0 to 6560 ft/min, 0 to 2186 yards/min, 0 to 2000 m/min |
| Length | 3.9 to 39370 inches, 0.3 to 3280 feet, 0.1 to 1093 yards, 0.1 to 1000 meters |
| Frequency (Hz) | 333 Hz |
| Accuracy | 0.05% rdg +1 digit |
| Sampling Time | 0.5 Sec > 120 rpm |
| Resolution | 0.1 rpm (< 10,000 rpm); 1 rpm (> 10,000 rpm) |
| Dimensions / Weight | 6.2 x 2.3 x 1.6 in (160 x 60 x 42 mm) / 5.3 oz (151 g) |
Datasheet
Datasheet
Manual
Manual
Specifications
Specifications
EXTECH RPM33 Specifications
| Category | Specification |
| Range (rpm) | 2 to 99,999 rpm, 2 to 20,000 rpm |
| Surface Speed | 0 to 78,720 inches/min, 0 to 6560 ft/min, 0 to 2186 yards/min, 0 to 2000 m/min |
| Length | 3.9 to 39370 inches, 0.3 to 3280 feet, 0.1 to 1093 yards, 0.1 to 1000 meters |
| Frequency (Hz) | 333 Hz |
| Accuracy | 0.05% rdg +1 digit |
| Sampling Time | 0.5 Sec > 120 rpm |
| Resolution | 0.1 rpm (< 10,000 rpm); 1 rpm (> 10,000 rpm) |
| Dimensions / Weight | 6.2 x 2.3 x 1.6 in (160 x 60 x 42 mm) / 5.3 oz (151 g) |
