FLIR ONE Pro Android (USB-C) Thermal Imaging Camera
Short Description:
Buy FLIR one pro Android in Dubai, UAE at unbeatable prices! Discover the best deals on quality products today.
Product purchase
Call for Best Price 00971(04) 447 6031 00971(04) 344 9868
12
People watching this product now!
Terms of sending goods ›
Description

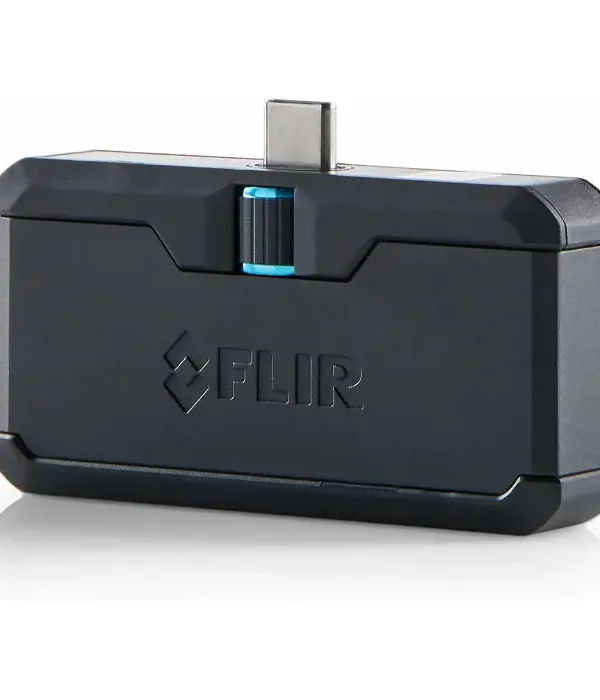

FLIR ONE Pro Android Thermal Imaging Camera
The FLIR ONE Pro Android (USB-C) is a thermal imaging camera that connects to Android devices via USB-C. It’s designed for a wide range of professional applications, providing detailed thermal images and temperature data directly on your mobile device.
The FLIR camera android Series camera boasts four times the native resolution of the FLIR ONE Pro LT, providing significantly improved image clarity enhanced by the innovative FLIR VividIR™ technology. It can measure temperatures over three times higher than any FLIR ONE® model, up to 400°C (752°F), and offers sensitivity capable of detecting temperature differences as small as 70 mK. Equipped with robust measurement tools, the FLIR ONE® Pro is designed to meet the demands of rigorous use.
FLIR One Android Key Features
- Adjust the length of the USB-C and Lightning connector up to an additional 4 mm
- Reversible connectors for Android and iOS
- Secure the FLIR ONE to your mobile device while keeping your phone safe
Specifications
Specifications
FLIR ONE Pro Specifications
| Category | Specification |
| General | |
| Certifications | MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233 |
| Operating Temperature | 0°C to 35°C (32°F to 95°F)<br>Battery Charging: 0°C to 30°C (32°F to 86°F) |
| Non-operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Size | 68 mm W x 34 mm H x 14 mm D (2.7 in x 1.3 in x 0.6 in) |
| Weight | 36.5 g |
| Mechanical Shock | Drop from 1.8 m (5.9 ft) |
| Video | |
| Camera Types | Thermal and visual cameras with MSX® |
| Thermal Sensor | Pixel size: 12 μM<br>Spectral range: 8 – 14 μM |
| Thermal Resolution | 160 x 120 |
| Visual Resolution | 1440 x 1080 |
| HFOV / VFOV | 55° ± 1° / 43° ± 1° |
| Frame Rate | 8.7 Hz |
| Focus | Fixed: 15 cm – Infinity |
| Radiometry | |
| Scene Dynamic Range | -20°C to 400°C (-4°F to 752°F) |
| Accuracy | ±3°C (5.4°F) or ±5%, typical. Percent of the difference between ambient and scene temperature. Applicable 60s after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F) |
| Thermal Sensitivity (MRTD) | 150 mK |
| Emissivity Settings | Matte: 95%<br>Semi-Matte: 80%<br>Semi-Glossy: 60%<br>Glossy: 30%<br>Reflected background temperature: 22°C (72°F) |
| Shutter | Automatic/Manual |
| Power | |
| Battery Life | Approximately 1 hour |
| Battery Charge Time | 40 minutes |
| Interfaces | |
| Video | Male Lightning (iOS), Male USB-C (Android) |
| Charging | Female USB-C (5V/1A) |
| App | |
| Image Capture | Video and still images<br>Saved as 1440 x 1080 |
| File Formats | Photo: Radiometric JPEG<br>Video: MPEG-4 (MOV for iOS, MP4 for Android) |
| Capture Modes | Video, Photo, Time Lapse |
| Palettes | Gray (white hot), Hottest, Coldest, Iron, Rainbow, Contrast, Arctic, Lava, Wheel |
| Spot Meter | Off / °C / °F<br>Resolution: 0.1°C / 0.1°F |
| Adjustable MSX Distance | 0.3 m – Infinity |
| Battery Charge Monitor | 0 – 100% |
