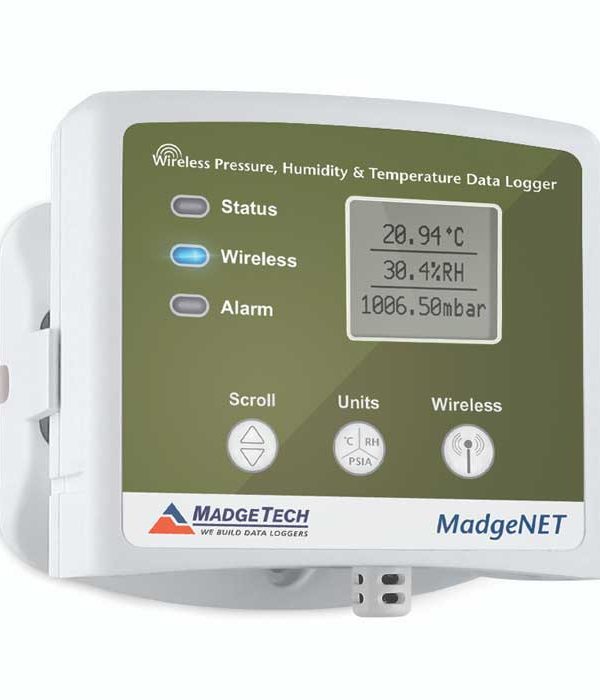

MadgeTech RFPRHTEMP2000A Temperature Data Logger

MadgeTech RFPRHTEMP2000A Wireless Pressure, Humidity, And Temperature Data Logger

The MadgeTech RFPRHTemp2000A is wireless pressure humidity and temperature Data Logger. It’s an all-in-one solution for monitoring and maintaining critical conditions.

This device features an LCD display that provides instant access to current readings, min, max, and average stats. Equipped with user-programmable alerts, the RFPRHTemp2000A will alert or notify users via email or SMS when thresholds are exceeded, allowing users to take immediate action.

The RFPRHTemp2000A may be started, stopped off, and downloaded with ease thanks to compatibility with the most recent MadgeTech 4 software. Engineering units that can be customized are offered for analysis in the form of graphic, tabular, and summary data.

The RFPRHTemp2000A is also compatible with MadgeTech Cloud Services, giving users the ability to remotely monitor data on any smartphone, tablet, or internet-enabled device.

MadgeTech RFPRHTEMP2000A Features

• Battery Life Indicator
•  Digital Display
•  Direct USB Interface
•  AC Power connection via USB
•  Configurable Alarms
•  Ability to manually reset statistics
•  5-year battery life at 15 Minute Reading Rate
•  NIST Traceable Calibration

MadgeTech RFPRHTEMP2000A Specifications

• General

• Memory: 10,752 readings (all channels enabled)
• Reading Rate: 1 reading every second up to 1 reading every 24 hours
• Baud Rate: 250,000
• Battery Life: 5 years typically at a 15-minute reading rate
• Material: ABS plastic
• Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) – Data logger only
• IP Rating: IP22
• Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F),
• 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA
• Required Interface Package: RFC1000
• Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

• Temperature

• Internal Channel Temperature Sensor: Resistance Temperature Detector (RTD)
• Internal Channel Temperature Range: -20 °C to +60 °C (-4 °F to +140 °F)
• Internal Channel Temperature Resolution: 0.01 °C (0.018 °F)
• Internal Channel Temperature Calibrated Accuracy: ±0.5 °C (+5 °C to +55 °C)

• Humidity

• Humidity Sensor: Relative Humidity Sensor
• Humidity Range: 0 %RH to 95 %RH
• Humidity Resolution: 0.1 %RH
• Humidity Calibrated Accuracy: ±3 %RH

• Pressure

• Pressure Sensor: Silicon
• Pressure Range: 250 mbar to 1300 mbar
• Pressure Resolution: 0.02 mbar
• Pressure Calibrated Accuracy: 10 mbar (+5 °C to +55 °C)

• Wireless

• RF Baud Rate: 250,000
• Output Power: +0 dBm typical
• Receiver Sensitivity: -95 dBm typical
• Typical outdoors Line of sight: Up to 2000 ft
• Typical Indoors line of sight: Up to 500 ft

MadgeTech RFPRHTEMP2000A Accessories

• RFC1000 Cloud Relay
• RFC1000 Wireless Transceiver
• RFC1000-IP69K Splash Proof Transceiver
• U9VL-J Lithium Battery
• USB Universal Power Adapter
• MadgeTech pressure data logger
