PCE-TDS 200 M Ultrasonic Flow Meter

The Ultrasonic Flow Meter PCE-TDS 200 M is a high-performing instrument that delivers precision and versatility for flow measurement. With its diverse measuring probes, data logging capabilities, and additional features like heat quantity calculation and adjustable alarm limits, it is an essential tool for professionals across various industries. For accurate flow measurement and easy data analysis, head over to mme-ae and explore the PCE-TDS 200 M Ultrasonic Flow Meter today!

SKU:63456

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 8,000 (excl.VAT)

19People watching this product now!

PCE-TDS 200 M Ultrasonic Flow Meter

The Ultrasonic Flow Meter PCE-TDS 200 M is a reliable and versatile solution if you need accurate flow measurement. You can find it on the mme.ae website. This meter offers precise flow measurement with a range of ±32 m/s and a reproducibility of ±0.5% of the measured value. This ensures that you receive accurate readings for your applications. readings for your specific needs.

Diverse Measuring Probes and Easy Data Analysis:

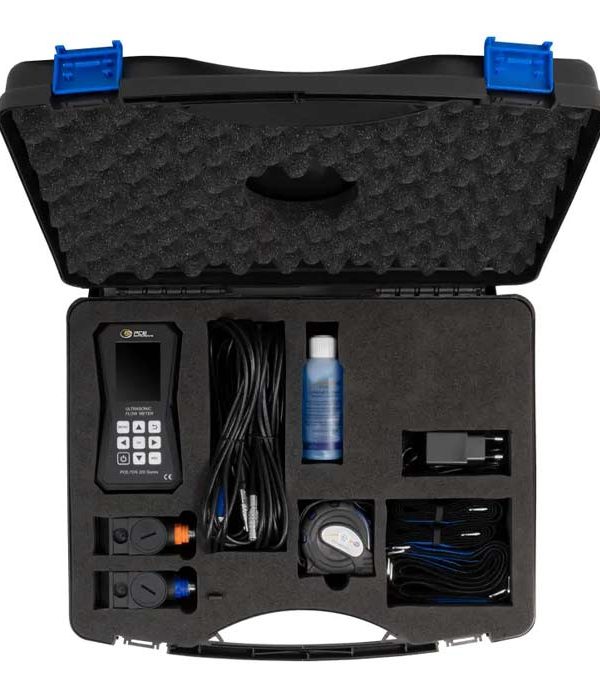

Equipped with different measuring probes and an installation aid, the PCE-TDS 200 M ensures accurate sensor positioning, leading to more reliable results. The meter displays flow velocity, volume flow, and volume in various units, providing you with comprehensive data at your fingertips. Moreover, with its 32 GB data memory and optional software, data analysis becomes a breeze. You can analyze the data in tabular or graphical form and export it as .csv or PDF reports for further assessment.

Additional Features for Enhanced Functionality:

To cater to a wider range of applications, the PCE-TDS 200 M can calculate heat quantity when equipped with two additional thermocouples, making it a valuable tool for heat transfer applications. The 2.8″ LC display ensures easy readings and navigation through the meter’s features. Moreover, for added assurance, the meter can be optionally equipped with ISO or DAkkS calibration certificates, ensuring the highest level of accuracy and traceability.

Medium-Sized Pipes Compatibility and Individually Adjustable Alarm Limits:

Designed for use in medium-sized pipes, the PCE-TDS 200 M Sensor has a measuring range of ±32 m/s and a reproducibility of ±0.5%. With its USB-C interface, data transfer becomes quick and efficient. Another noteworthy feature is the meter’s individually adjustable alarm limits, allowing you to set customized thresholds for specific applications.

more information

MME-AE is a renowned importer and distributor of Flow meters in Dubai and various other countries, providing the most competitive prices in the market. For purchasing Flow Meter and obtaining detailed pricing information, we encourage you to get in touch with our knowledgeable experts at MME-AE. to buy PCE TDS200 or wanted to know about PCE TDS 200 visit our website.

Pce Tds 200 M Ultrasonic Flow Meter

Buy PCE TDS 200 M Ultrasonic Flow Meter mme-ae.com

PCE-TDS 200M Specifications:

  • Measuring range: ±32 m/s
  • Accuracy: 0,001 m/s
  • Accuracy: DN ≥50 mm: ±1.5 % f.s. for velocities > 0.3 m/s, DN <50 mm: ±3.5 % f.s. for velocities > 0.3 m/s
  • Reproducibility: ±0.5 % of measured value
  • PCE-TDS 200 M SENSOR: Sensor pair
  • Pipe diameter: DN 50-700 / 57-720 mm
  • Temperature resistance: -30160 °C
  • Measuring method: Z, V, N, W
  • Medium:
    • water
    • seawater
    • oil
    • crude oil
    • methanol
    • ethanol
    • diesel
    • petrol
    • petroleum
    • user-defined
    • (manual input of the sound velocity from the medium)
  • All liquids with an impurity: <5 %
  • Pipe material:
    • copper
    • steel
    • stainless steel
    • Aluminium
    • brass
    • cast iron
    • Iron
    • nickel
    • titanium
    • zinc
    • acrylic
    • polyethylene
    • polypropylene
    • polyvinyl chloride
    • nylon
    • user-defined
    • (manual input of the transversal sound velocity of the pipe material)
  • Inner pipelining:
    • no lining
    • user-defined
    • epoxy resin
    • rubber
    • mortar
    • polystyrene
    • polyethylene
    • polytetrafluoroethylene
    • polyurethane
    • polypropylene
    • user-defined
    • (manual input of the longitudinal sound velocity of the inner lining of the pipe)
  • Measurement parameters: flow velocity, volume flow, and volume
  • Units (dimensions): mm, in
  • Units (flow velocity): m/s, ft/s
  • Units (volume flow): m³, l, gal, igl, mgl, cf, bal, ib, ob
  • Time specification: seconds, minutes, hours, days
  • Units (volume): m³, l, gal, igl, mgl, cf, bal, ib, ob
  • 2.8″ LCD
  • Operating and storage Temperature: -20 – +65 °C, Humidity: 10 … 95 % r. h., non-condensing
  • Data logger: 32 GB memory capacity / 10 million measuring points
  • Interface: USB (for online measurement, readout of the internal memory, memory and for recharging the battery)
  • Protection class: IP52
  • Power supply: Li-Po battery (3.7 V, 2500 mAh) External: USB 5 VDC, 500 mA
  • Operating time: approx. 10 h
  • Dimensions: 165 x 85 x 32 mm
  • Weight: 255 g
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “PCE-TDS 200 M Ultrasonic Flow Meter”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Pce

PCE Instruments is a reliable brand that provides a wide range of high-quality measuring tools for industries such as laboratory testing, industrial manufacturing, and environmental monitoring. With a team of highly skilled engineers and scientists, PCE Instruments develops innovative products in-house to ensure quality and precision. The brand has a world-class reputation for reliability, durability, and accuracy.

pce logo brand3

Datasheet

Datasheet

Datasheet

Specifications

Mechanical and General Specifications
Dimensions

165 x 85 x 32 mm

Weight

255 g

Power

External: USB 5 VDC, 500 mA, Internal: LiPo battery (3.7 V, 2500 mAh)

Operating temperature

-20 … +65 °C
