Testo 400 air flow kit with hot wire probe

(1 customer review)

Short Description:

TESTO 400 air flow kit with hot wire probe Key features

  • Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111
  • Determination of the volume flow at outlets by measuring the reference pressure and entering the manufacturer-specific K-factor
  • Smart, intuitive measurement programs, complete your measurement with full documentation on site at the customer’s premises or carry out further analysis using the testo DataControl measurement data management and analysis software
  • In the kit: testo 400 universal IAQ instrument, hot wire probe (with Bluetooth® handle and telescope), vane probe head (Ø 100 mm), high-precision humidity/temperature probe head, 90° angle, case
Product purchase

AED 12,461 (excl.VAT)

10 People watching this product now!
Terms of sending goods ›
  •  In-stock items are delivered within 2 business days.
  • We are not Supporting COD Payments Terms Outside UAE

Testo 400 airflow kit with a hot wire probe

Order-Nr.  0563 0400 71

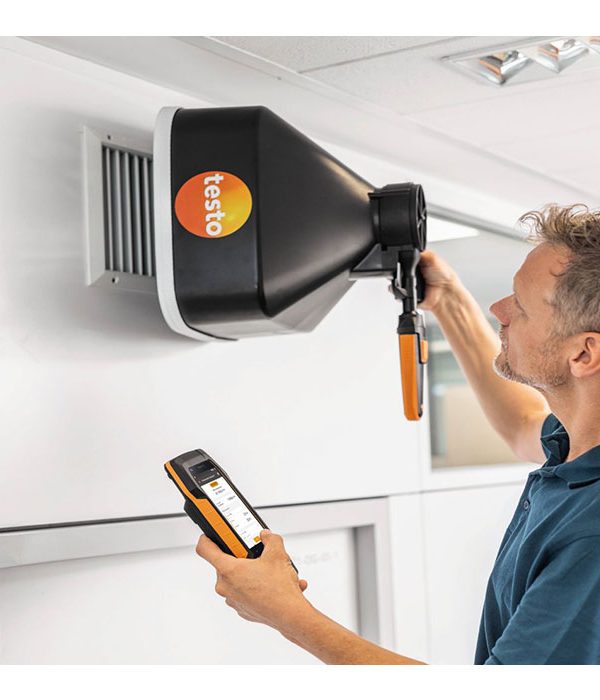

You will receive the testo 400 universal IAQ measuring instrument with intuitive measurement menus, one hot wire probe head (including temperature and humidity sensor), one vane probe head (Ø 100 mm), and one high-precision humidity/temperature probe head – all three can be attached to the Bluetooth® handle supplied. For measurements at ceiling outlets, simply combine the 100 mm vane probe with the telescope (which can be extended up to 1.0 m) and the 90° angle.

Testo 400 Specifications

Item Details Part Number
Universal IAQ Instrument testo 400 universal IAQ instrument, silicone hoses, mains unit with USB cable, calibration protocol, instruction manual 0560 0400
Hot Wire Probe with Bluetooth® Including temperature and humidity sensor (consisting of hot wire probe head, handle adapter, and Bluetooth® handle), 4 x AA batteries, telescope (extendable up to 1.0 m), calibration protocol 0635 1571
Vane Probe Head (Ø 100 mm) Including temperature sensor, bracket for testovent measurement funnel, calibration protocol 0635 9430
High-Precision Humidity/Temperature Probe Head Including calibration protocol 0636 9770
Usage Note for Humidity/Temperature Probe Head Do not use the probe head in condensing atmospheres. For continuous application in high-humidity ranges: > 80% RH at ≤ 30°C for > 12 h, > 60% RH at > 30°C for > 12 h
Contact Information For continuous use in high-humidity ranges, contact Testo Service or via the Testo website
90° Angle for Vane Probes (Ø 100 mm) 0554 0991
Transport Case for Airflow Measurements 0516 1400
Pressure

testo 400: :
Differential pressure: -100 to +200 hPa, ±0.3 Pa + 1% of m.v. (0 to +25 hPa) OR ±0.1 hPa + 1.5% of m.v. (+25.001 to +200 hPa), 0.001 hPa
Absolute pressure: 700 to 1100 hPa, ±3 hPa, 0.1 hPa
Hot wire probe with Bluetooth: 700 to 1100 hPa, ± 3 hPa, 0.1 hPa

Dimensions

High-precision humidity/ temperature probe head: 160 x 28 x 28 mm

,

Hot wire probe with Bluetooth: 780 x 50 x 40 mm

,

testo 400: 210 x 95 x 39 mm

,

Vane probe head (Ø 100 mm): 180 x 105 x 46 mm

Weight

High-precision humidity/ temperature probe head: 20 g

,

Hot wire probe with Bluetooth: 400 g

,

testo 400: 510 g

,

Vane probe head (Ø 100 mm): 125 g

Operating temperature

Hot wire probe with Bluetooth: -20 to +70 °C

,

testo 400: -5 to +45 °C

,

Vane probe head (Ø 100 mm): -20 to +70 °C

Storage temperature

High-precision humidity/ temperature probe head: -20 to +70 °C

,

Hot wire probe with Bluetooth: -20 to +70 °C

,

testo 400: -20 to +60 °C

,

Vane probe head (Ø 100 mm): -20 to +70 °C

interface

Hot wire probe with Bluetooth: Bluetooth

,

testo 400: Bluetooth, USB, WLAN

Air velocity range/resolution/accuracy

Hot wire probe with Bluetooth: 0 to 50 m/s, ±(0.03 m/s + 4% of m.v.) OR (0 to 20 m/s) OR ±(0.5 m/s + 5% of m.v.) (20.01 to 30 m/s), 0.01 m/s

,

Vane probe head (Ø 100 mm): 0.3 to 35 m/s, ±(0.1 m/s + 1.5% of m.v.) (0.3 to 20 m/s) OR ±(0.2 m/s + 1.5% of m.v.) (20.01 to 35 m/s), 0.1 m/s

Temperature/range/resolution/accuracy

High-precision humidity/ temperature probe head: -20 to +70 °C, ±0.3 °C (15 to 30 °C) OR ±0.5 °C (remaining meas. range), 0.1 °C

,

Hot wire probe with Bluetooth: -20 to +70 °C, ±0.5 °C (0 to +70 °C) OR ±0.8 °C (-20 to 0 °C), 0.1 °C

,

Vane probe head (Ø 100 mm): -20 to +70 °C, ±0.5 °C, 0.1 °C

Humididty

Hot wire probe with Bluetooth: 5 to 95 % RH, ±3.0 %RH (10 to 35 %RH) OR ±2.0 %RH (35 to 65 %RH) OR ±3.0 %RH (65 to 90 %RH) OR ±5 %RH (remaining meas. range), 0.1 %RH
High-precision humidity/ temperature probe head: 0 to 100 %RH, ±(0.6 %RH + 0.7% of m.v.) (0 to 9 %RH) OR ±(1.0 %RH + 0.7% of m.v.) (90 to 100 %RH), 0.01 %RH

Data Sheet

Data Sheet

Specifications

Testo 400 Specifications

Item Details Part Number
Universal IAQ Instrument testo 400 universal IAQ instrument, silicone hoses, mains unit with USB cable, calibration protocol, instruction manual 0560 0400
Hot Wire Probe with Bluetooth® Including temperature and humidity sensor (consisting of hot wire probe head, handle adapter, and Bluetooth® handle), 4 x AA batteries, telescope (extendable up to 1.0 m), calibration protocol 0635 1571
Vane Probe Head (Ø 100 mm) Including temperature sensor, bracket for testovent measurement funnel, calibration protocol 0635 9430
High-Precision Humidity/Temperature Probe Head Including calibration protocol 0636 9770
Usage Note for Humidity/Temperature Probe Head Do not use the probe head in condensing atmospheres. For continuous application in high-humidity ranges: > 80% RH at ≤ 30°C for > 12 h, > 60% RH at > 30°C for > 12 h
Contact Information For continuous use in high-humidity ranges, contact Testo Service or via the Testo website
90° Angle for Vane Probes (Ø 100 mm) 0554 0991
Transport Case for Airflow Measurements 0516 1400
