Kyoritsu 2046R AC/DC Digital Clamp Meter

Kyoritsu 2046R AC/DC Digital Clamp Meter

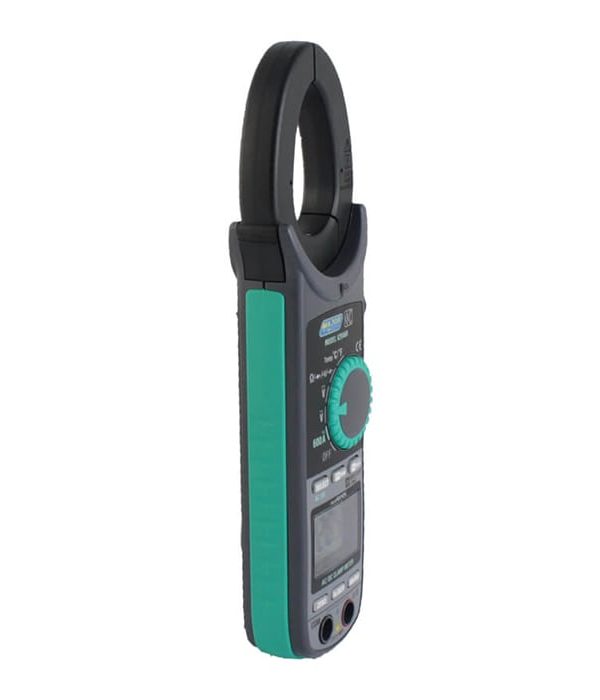

The Kyoritsu 2046R AC/DC Digital Clamp Meter is a highly versatile and essential tool tailored for professionals working within power distribution companies, power utilities, and maintenance sectors. This advanced clamp meter is designed to meet the rigorous demands of modern electrical diagnostics and maintenance, offering precision, ease of use, and a comprehensive array of features.

A standout functionality of the kyoritsu clamp meter 2046r is its “Non Contact Voltage” detection feature. This safety-oriented function utilizes a red LED to alert users to the presence of AC voltage, enhancing safety by helping to prevent unintended contact with live circuits. This feature is particularly valuable in environments where the risk of electrical shock is a concern, providing an additional layer of security for field technicians.

The ergonomic design of the Kyoritsu 2046R includes a double molding on the handle, which not only provides a secure grip but also ensures comfort during prolonged use. This design minimizes fatigue and maximizes efficiency, especially during extensive operations typical in fieldwork and industrial applications.

In terms of display, the clamp meter boasts a 6039-count display with a Bar Graph feature. This high-resolution display facilitates detailed readings that are easy to read and interpret, allowing for precise monitoring and adjustment of electrical parameters. The bar graph provides a dynamic visual representation of measurements, which is incredibly useful for tracking changes in real time.

Furthermore, the 2046r kyoritsu offers a minimum resolution of 0.1A, allowing for highly accurate and sensitive measurements of current flow. This high degree of resolution is crucial for detecting subtle anomalies and ensuring the reliability and efficiency of electrical systems being tested.

Kyoritsu 2046R AC/DC Digital Clamp Meter Specifications :

• AC A (RMS) : 0 – 600.0A
  ±2.0%rdg±5dgt (50/60Hz)
  ±3.5%rdg±5dgt (40 – 500Hz)
• DC A : 0 – 600.0A
  ±1.5%rdg±5dgt
• AC V : 6/60/600V
  Auto Ranging
  ±1.5%rdg±4dgt (50/60Hz)
  ±3.5%rdg±5dgt (40 – 400Hz)
• DC V : 600m/6/60/600V
  Auto Ranging
  ±1.0%rdg±3dgt
• Ω : 600/6k/60k/600k/6M/60MΩ (Auto Ranging)
  ±1%rdg±5dgt (600 – 6M) / ±5%rdg±8dgt (60M)
• Continuity buzzer : Buzzer Sounds at 100Ω
• Capacitance test : 400n/4µ/40µF(Auto Ranging)
• Temperature : -50ºC – +300ºC (With the use of Temperature probe 8216)
• Frequency/DUTY : 10/100/1k/10kHz (Auto Ranging) / 0.1 – 99.9%
• Conductor size : Ø33mm
• Safety Standard : IEC 61010-1 CAT IV 600V,
  IEC 61010-031,
  IEC 61010-2-032,
  IEC 61326
• Power source : R03 (1.5V) (AAA) × 2
• Dimensions : 243(L) × 77(W) × 36(D)mm
• Weight : 300g
