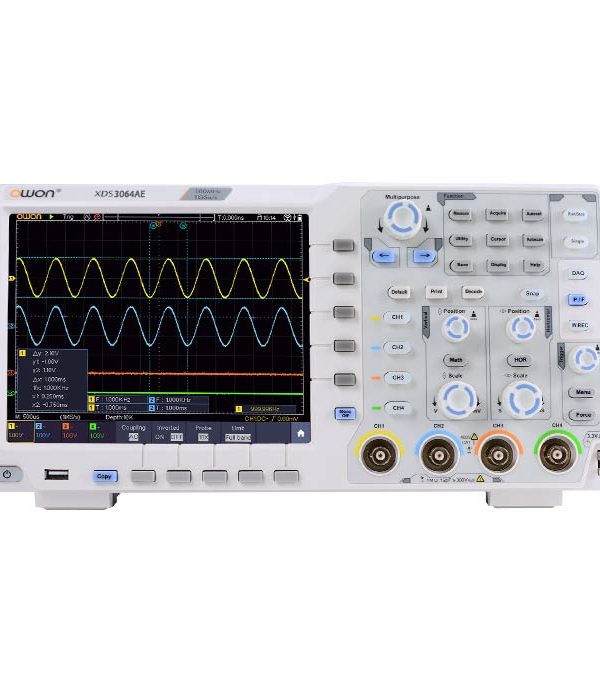

OWON XDS3064AE 4CH 8/14bit Touchscreen Digital Oscilloscope

The OWON XDS3064AE 4CH 8/14bit Touchscreen Digital Oscilloscope is more than a tool; it’s a portal to the heart of electronics. As we embark on this journey through precision and innovation, the mme.ae website serves as our guide. With its intuitive touchscreen interface, versatility, and unparalleled precision, the XDS3064AE redefines how we approach electronic testing. Whether in the hands of seasoned engineers or passionate hobbyists, this oscilloscope stands ready to uncover the mysteries of electronic signals and reshape the landscape of technological exploration.

SKU:65395

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

20People watching this product now!

OWON XDS3064AE 4CH 8/14bit Touchscreen Digital Oscilloscope

Embark on an electrifying journey into the world of cutting-edge electronics with the OWON XDS3064AE 4CH 8/14bit Touchscreen Digital Oscilloscope. This technological marvel is the ultimate tool for unlocking the mysteries of electronic signals, giving engineers and enthusiasts the power to unravel the complexities of our modern world. Get ready to experience the pinnacle of precision and innovation as we explore the incredible capabilities of this game-changing oscilloscope, all available at the mme.ae website.

Unveiling Precision

The OWON XDS3064AE oscilloscope is a testament to precision. Offering a bandwidth of up to 60MHz and a 1GS/s sample rate, it captures waveforms with remarkable clarity. Choosing between 8-bit and 14-bit resolution ensures that the smallest nuances of a signal are brought to light. With a record length of up to 40M points and a waveform refresh rate of 45,000 wfms/s, engineers gain unprecedented insights into their designs.

Touch of Innovation

The intuitive touchscreen interface of the OWON XDS3064AE redefines user interaction. Featuring an 8-inch high-resolution LCD display, this oscilloscope responds to touch with fluidity and grace. Engineers can navigate through settings, measurements, and functions with the simplicity of modern touch-enabled devices. Moreover, the optional multi-touch screen further enhances usability, making this instrument a joy to work with.

Beyond the Basics

The XDS3064AE transcends the boundaries of a traditional oscilloscope. It serves as a multi-function mobile tester, combining oscilloscope functionality with that of a signal generator, multimeter, frequency counter, data logger, and decoder. With support for Li-ion battery operation, it’s an ideal companion for on-the-go testing. The inclusion of WiFi functionality and multi-touch capabilities elevates its status as a truly modern instrument.

OWON XDS3064AE 4CH 8/14bit Touchscreen Digital Oscilloscope Specifications:

  • Bandwidth: 60MHz
  • Sample Rate: 1GS/s
  • Vertical Resolution (A/D): 14 bits
  • Record length: 40M
  • Waveform Refresh Rate: 45,000 wfms/s
  • Horizontal Scale (s/div): 2ns/div – 1000s/div, step by 1 – 2 – 5
  • Channel: 4
  • Display: 8″ color LCD, 800 x 600 pixels display
  • Sample Rate / Relay Time Accuracy: ±2.5 ppm
  • Input Coupling: DC, AC, GND
  • Vertical Sensitivity: 1mV/div – 10V/div (at input)
  • Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
  • Bus Decoding(optional): I2C, SPI, RS232, CAN
  • Trigger Mode: Auto, Normal, and Single
  • Vertical Range: ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div)
  • Waveform Math: +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
  • Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
  • Frequency Counter: available
  • Power Supply: 100V – 240V AC, 50/60Hz, CAT II
  • Fuse: 2A, T class, 250V
  • Battery (optional): 3.7V, 13200mA
  • Dimension (W x H x D): 340mmx177mmx90mm
  • Optional Module / Function:
  • VGA: VGA+AV port
  • WIF: Wifi
  • DMM: digital multimeter
  • MTS: Touch screen(capacitor-type)
  • Optional Decoding Kit:
  • RS232
  • SPI
  • I2C
  • CAN
  • Accessories: Power Cord, CD Rom, Quick Guide, USB Cable, Probe, Probe Adjust, Capacitance Ext Module (optional), Multimeter Lead (optional), Q9 (optoinal), Soft Bag (optional), Battery (optional)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “OWON XDS3064AE 4CH 8/14bit Touchscreen Digital Oscilloscope”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Owon

"OWON" is a distinguished brand that has made significant strides in the field of electronic test and measurement equipment. With a commitment to innovation, precision, and user-friendly design, OWON has established itself as a trusted name among professionals, researchers, and enthusiasts seeking top-quality tools for accurate measurements and data analysis.

The brand's journey began with a focus on oscilloscopes, and over the years, OWON has expanded its product range to encompass a diverse array of electronic testing equipment. From digital oscilloscopes and waveform generators to multimeters, power supplies, and spectrum analyzers, OWON's offerings cater to a wide spectrum of industries, including electronics, telecommunications, education, and research.

In conclusion, OWON is a name associated with quality, innovation, and affordability in the field of electronic test and measurement equipment. OWON equips experts and hobbyists to succeed in their respective industries with a wide variety of instruments that are made for precision, usability, and connectivity.

Specifications

specifications
AC Current(Range/Resolution/Accuracy)

400mA: ±(2%±1digit), 40mA: ±(1.5%±3digit), 4A, 10A: ±(3%±3digit)

DC Current(Range/Resolution/Accuracy)

40mA, 400mA: ±(1.5%±1 digit), 4A, 10A: ±(3%±3digit)

DC Voltage(Range/Resolution/Accuracy)

400mV, 4V, 40V, 400V, 1000V: ±(1%±1digit)

Resistance(Range/Resolution/Accuracy)

400Ω: ±(1%±3digit), 40MΩ: ±(1.5%±3digit), 4KΩ~4MΩ: ±(1%±1digit)

Capacitance(range/resolution/accuracy)

51.2nF – 100uF: ±(3%±3 digits)

Frequency (Range/Resolution/Accuracy)

40Hz – 400Hz

Oscilloscopes
Bandwidth

60MHz

Channels

4

Max Input Voltage

400 V (DC + AC Peak)

Sample rate

1GS/s

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)

Vertical Resolution

14bits

Vertical Sensitivity

1mV/div – 10V/div (at input)

Mechanical and General Specifications
Dimensions

340 mm × 177 mm ×90 mm (L*H*W)

Weight

Approx. 2.6 kg (without accessories)

Power

100V – 240 VACRMS, 50/60 Hz, CAT Ⅱ

Accessories

Power Cord, CD Rom, Quick Guide, USB Cable, Probe, Probe Adjust, Capacitance Ext Module (optional), Multimeter Lead (optional), Q9 (optoinal), Soft Bag (optional), Battery (optional)
