PCE-LMD 10 Lux Meter / Logger

Additionally, the PCE-LMD 10 Luxmeter has a 32,000-value memory. You can download the values to a computer for analysis after the measurement is complete. One can also carry out a measurement in real-time. The lux meter data may be exported in CSV format so that the values can be changed.

SKU:61741

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 876 (excl.VAT)

17People watching this product now!

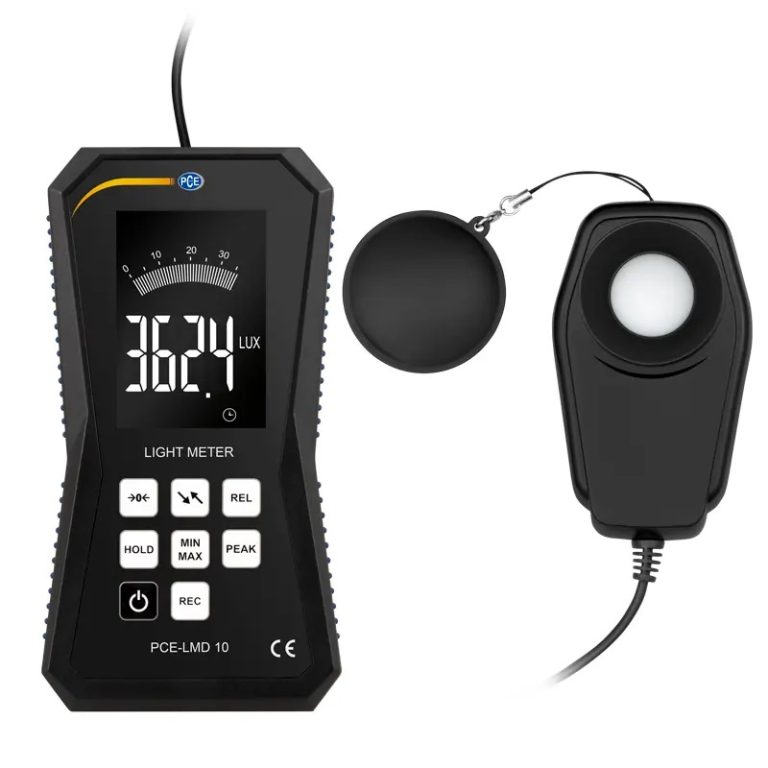

PCE-LMD 10 Lux Meter / Logger

An instrument called a lux meter, sometimes known as a light meter, measures ambient light intensity in various fields, including photography, videography, interior design, lighting, agriculture, etc. This gadget uses a light sensor to detect the light intensity and digitally displays the result.

Product Overview

The lux meter has a measurement range of 0 to 400,000 lux. The sensor for the lux meter is a silicon photodiode with a spectrum filter. This ensures the light meter sensor is always in the right place. The lux meter displays both Lux and Footcandle measurement measurements. They may be seen numerically as well as in bar graph form.

The lux meter PCE LMD10 offers extra capabilities for use in the analysis. The maximum and minimum readings are displayed on the screen of the lux meter when the “MIN” and “MAX” keys are pressed. Using the “REL” key, you may also relate the value displayed on the screen. The peak value is captured by the “PEAK” function. The measurement frequency when this feature is turned on is 10 s.

Function

The automatic lighting adjustment feature of the PCELMD10 Luxmeter makes it simple for the user to gauge ambient light intensity. Additionally, this gadget allows the user to swiftly leave the permissible boundaries of light intensity and prevent the risks brought on by excessive light thanks to its capacity to notify if a particular value is surpassed.

PCE-LMD 10 Luxmeter features

  • Rechargeable battery
  • Micro USB interface
  • Range: 0 … 400,000 lux
  • Units: Lux and Footcandle
  • Backlit LCD display
  • Memory for 32,000 values
  • With software
  • Optional: ISO calibration certificate

Related Products

More information

MME-AE is a renowned importer and distributor of lux meter meters in Dubai and various other countries, providing the most competitive prices in the market. For purchasing a lux meter and obtaining detailed pricing information, we encourage you to get in touch with our experts at MME-AE.

PCE-LMD 10 Luxmeter specifications

  • Lux
    Beach: 0.0 … 999.9 lux
    1000 … 400,000 lux
    Resolution: 0.1lux
    1lux 0.0 … 999 lux
    1000 … 400,000 lux
  • Footcandle
    Beach: 0.00 … 99.00 fc
    100.0 … 999.0 fc
    1000 … 40000 fc
    Resolution: 0.01 fc
    0.1 fc
    1 fc 0.00 … 99.00 fc
    100.0 … 999.0 fc
    1000 … 40000 fc
  • Accuracy: ±5% of reading ±10 digits (standard illuminant A)
    ±10% of reading ±10 digits
  • Repeatability: ±2%
  • Measurement frequency: 4Hz
  • Peak-Hold measurement frequency: 10µs
  • Memory: 32,000 values
  • Sensor: Silicon photodiode with a spectral filter
  • Interface: Micro-USB
  • Battery: 3.7V Li-Ion
  • Battery level: Battery symbol display when low
  • USB charger: 5 V DC, 1 A
  • Operational conditions: -10 … +50 °C / <80 % rH non-condensing
  • Storage conditions: -20 … +50 °C / <80 % rH non-condensing
  • Dimensions Device 162 x 88 x 32mm
  • Sensor 102 x 60 x 25mm
  • Weight: About 320g
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “PCE-LMD 10 Lux Meter / Logger”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Pce

PCE Instruments is a reliable brand that provides a wide range of high-quality measuring tools for industries such as laboratory testing, industrial manufacturing, and environmental monitoring. With a team of highly skilled engineers and scientists, PCE Instruments develops innovative products in-house to ensure quality and precision. The brand has a world-class reputation for reliability, durability, and accuracy.

pce logo brand3

Datasheet

Mme-Pdfs-Image

Specifications

Lux meter
Frequency bandwidth

4Hz

illuminance range(Lux) range/resolution/accuracy

0.0 … 999.9 lux/0,1 lux/±5% of reading ±10 digits, 1000 … 400 000 lux/1 lux/±5% of reading ±10 digits

illuminance range(FC) range/resolution/accuracy

0,00 … 99,00 fc/0,01 fc/±5% of reading ±10 digits, 100,0 … 999,0 fc/0.01FC /±5% of reading ±10 digits, 1000 … 40 000 fc/1FC /±5% of reading ±10 digits

Sensor

Silicon photodiode with a spectral filter

Mechanical and General Specifications
Dimensions

162 x 88 x 32mm

Weight

320g

Power

3.7V Li-Ion

Operating temperature

-10 … +50 °C / <80 % rH non-condensing

Storage temperature

-20 … +50 °C / <80 % rH non-condensing

More
interface

Micro-USB
