Hioki Phase Detector PD3129-10
Hioki PHASE DETECTOR PD3129-10 Key Features:

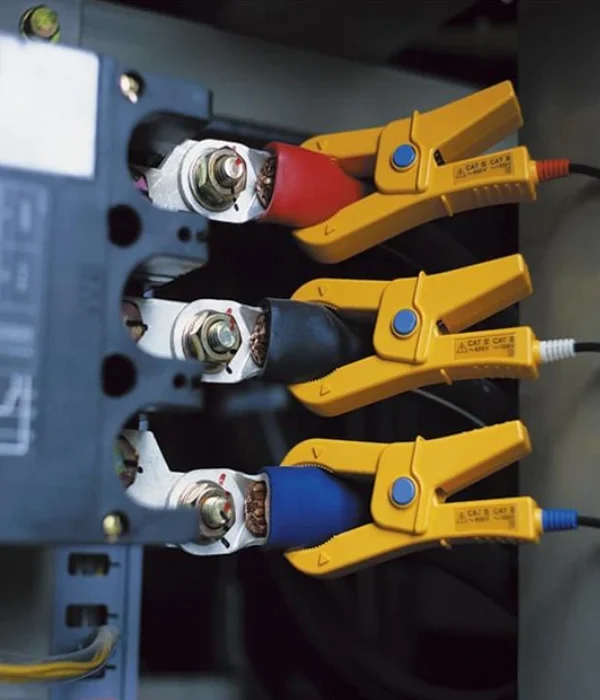

- Simply clip clamps onto wire insulation
- Green LED arrow clearly shows phase direction, perfect for visual reports
- CAT III 1000V
- Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
- Magnetic base allows the instrument to be secured on a distribution panel
AED 628 (excl.VAT)
We are not Supporting COD Payments Terms Outside UAE
Hioki Phase Detector PD3129-10
The Hioki PD3129-10 phase detector, commonly known as the Hioki phase rotation metre, is a high-tech instrument that detects phase and measures rotation.
hioki phase rotation meter overview
Hioki’s non-contact voltage detection and measuring technology prioritises efficiency and safety, with the purpose of safeguarding customers who need to execute on-site electrical work as part of manufacturing plant and building restorations and expansions. The PD3129-10 is a non-contact phase rotation metre that measures the phase of insulated wire current flow without the use of metallic contact voltage clamps. The green arrow denotes normal phase, which is useful for visual reports that demonstrate the proper completion of electrical work.
The Hioki PD3129-10 has a number of cutting-edge features that make it a vital tool for professionals across a wide range of industries. This phase detector’s great accuracy and dependability allow for exact detection and measurement of phase sequence and rotation direction. The PD3129-10 features easy-to-read LED indications and intuitive controls for simple operation and speedy phase analysis. Its compact and sturdy construction, as well as an integrated voltage range of up to 1000V, improves measuring safety and efficiency.
The Hioki PD3129-10 phase detector is widely used in electrical installations, maintenance, and troubleshooting. It is critical in ensuring proper phase wiring during equipment installation and avoiding potential problems caused by erroneous phase sequence. The PD3129-10 is commonly used for dependable phase detection and rotation measurement in industrial settings, commercial buildings, and electrical service organizations.
phase detector in uae
Phase detectors are extremely important in the UAE for guaranteeing the proper operation and safety of electrical systems. With the growing expansion of infrastructure and building projects, reliable phase detection and rotation measurement is becoming increasingly important. The Hioki brand, especially Hioki phase detectors, is well-known in the UAE for its high quality, dependability, and cutting-edge technology. These phase detectors are critical for ensuring efficient electrical operations and lowering the danger of electrical problems.
Hioki Phase Detector PD3129-10 Specification:
- Voltage range: 70 to 1000 V AC (50/60 Hz)
- Frequency range: 45 Hz to 66 Hz
- Power supply: R6P (AA) manganese battery ×2
- Dimensions and mass: 70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 240 g (8.5 oz)
You must be logged in to post a review.
Brand
Hioki
Hioki is a renowned Japanese brand known for its expertise in developing and manufacturing electrical measuring instruments. The company, Hioki E.E. Corporation, was established in 1935, and since then, it has committed itself to providing innovative solutions in the field of electrical measurement.
Hioki's product range is extensive, including devices such as digital multimeters, clamp meters, power meters, and oscilloscopes. These instruments are vital for various applications in research and development, maintenance, and production testing across industries like electronics, energy, and automotive. One of the key strengths of Hioki is its focus on precision and reliability, traits that are crucial in measurement instruments. Hioki’s products are designed to offer accuracy and durability, which make them preferred choices among professionals worldwide.
Moreover, Hioki emphasizes technological innovation and quality. The company invests significantly in research and development to keep up with evolving technological trends and to ensure their products meet the highest standards. This commitment to quality is reflected in their adherence to international certifications and standards. Hioki also values environmental sustainability, integrating eco-friendly practices in their operations and product designs. This includes efforts to reduce the environmental impact of their manufacturing processes and to design products that are energy efficient.
Specification
Technical Specifications
Functions | Phase detection (positive and negative) |
---|---|
Voltage Detection Method | Static induction |
Voltage Range | 70 to 1000 V AC (50/60 Hz) (sine wave, continuous input) |
Frequency Range | 45 Hz to 66 Hz |
Object to be Connected | 7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring |
Display | Phase detection: Positive; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up. Negative; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously. |
Battery Check Function | Power ON lamp: lights up (Power ON), blinks (Battery LOW) |
Auto Power Off | Auto shut off if no activity is detected after power is turned ON for 15 minutes |
Power Supply | R6P (AA) manganese battery ×2, Continuous use: 70 hr |
Dimensions and Mass | 70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 240 g (8.5 oz), Cord length: 0.7 m (2.30 ft) |
Included Accessories | Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, R6P (AA) manganese battery ×2 |
