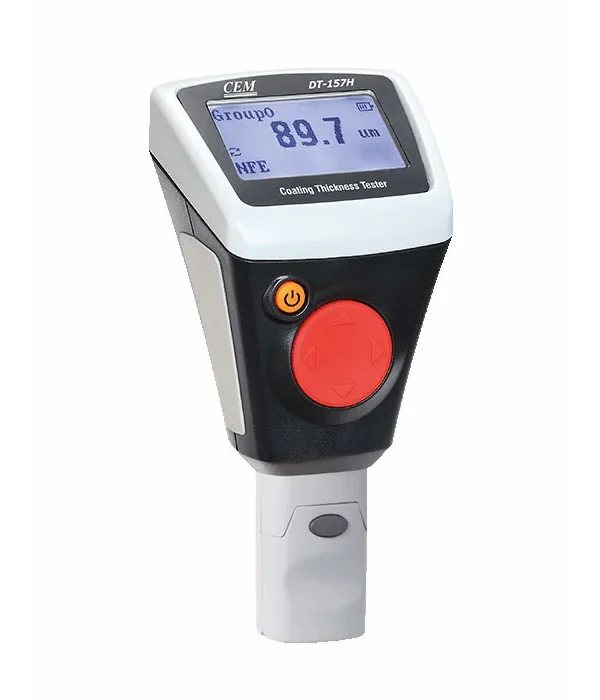

CEM DT-157H Coating Thickness Tester
The CEM DT-157H is a coating thickness tester used for measuring the thickness of non-magnetic coatings on magnetic substrates (like paint or zinc on steel) and non-conductive coatings on non-magnetic metals (like paint or anodizing on aluminum). It typically employs electromagnetic induction and eddy current principles to measure thickness.
The device is portable and commonly used in fields such as manufacturing, quality control, and corrosion protection. It provides a straightforward way for professionals to ensure that coatings meet specified requirements for thickness, which is crucial for both the performance and longevity of the material underneath.
CEM DT-157H Key Features
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint) on no-ferrous metals
- No-ferrous metals coatings on insulating substrates
- Menu operation system
- Two working modes: DIRECT and GROUP mode
- Statistic Display: AVG, MAX, MIN, NO., S.DEV
- One point calibration, two points calibration and basic calibration easily
- Delete single readings and all group readings easily
- Low battery, error indication
- Memory for 2500 readings (50 GROUP readings)
- 4 levels of battery indication
- Error indication
- Bluetooth interface
- Easily adapt to lighting conditions with 8 levels of backlight
CEM DT-157H Specifications
Specifications: | ||
Sensor probe | F | N |
Working principle | magnetic induction | Eddy current principle |
Measuring range | 0~2000um | 0~2000um |
Guaranteed tolerance (of reading) | (+/- 2%+2)um | (+/- 2%+2)um |
Repeatability | (+/- 1%+1)um | (+/- 1%+1)um |
Low range Precision | 0.1um | 0.1um |
Minimum curvature radius | 1.5mm | 3mm |
Diameter of Minimum area | 7mm | 5mm |
Basic critical thickness | 0.5mm | 0.3mm |
