Megger AVO410 TRMS Multimeter

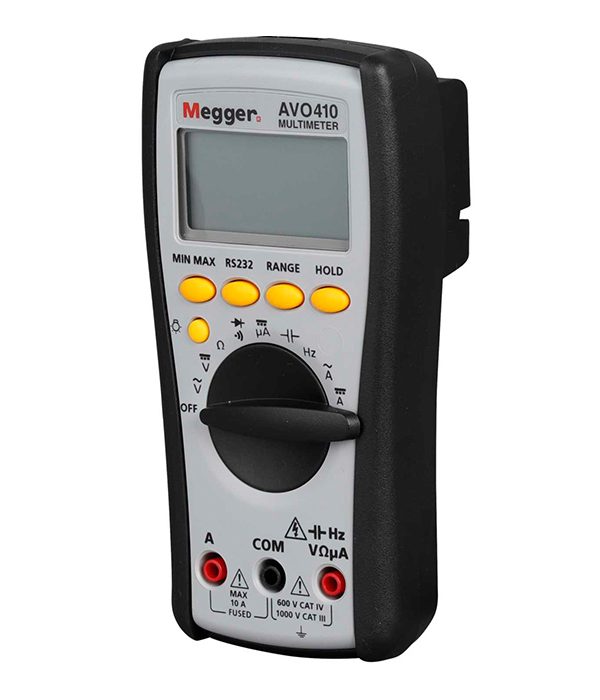

Megger AVO410 TRMS ELECTRICIANS’ MULTIMETER

The Megger AVO410 Digital Multimeter is a highly reliable and precise instrument, crafted specifically for the demanding needs of contracting electricians. It features a robust set of functions, making it versatile enough for a broad spectrum of applications, especially in industrial environments where both accuracy and durability are essential.

With the capability to measure AC and DC voltage and current, as well as frequency, resistance, and capacitance, the AVO410 stands out as a comprehensive tool for detailed electrical diagnostics. One of its key features is the True RMS (Root Mean Square) functionality, which provides added accuracy for the AC measurements, ensuring that electricians can trust the data in even the most complex power systems with non-linear loads.

Safety is a paramount concern in industrial settings, and the AVO410 is designed with this in mind. It boasts a CAT IV 600V safety rating, making it suitable for high-voltage environments and capable of withstanding industrial electrical hazards. This multimeter’s durability is further enhanced by its slim, compact case and tough rubberized holster, which provides extra protection against the harsh conditions typically found in industrial workspaces.

The design of the Megger AVO410 is optimized for efficiency and ease of use. It supports single-handed operation and features a clear, straightforward interface that allows electricians to perform tests quickly and effectively. The multimeter is auto-ranging when a function is selected, but it also allows for manual range adjustments to give users full control over the device’s capabilities.

Additional functionality includes a MIN MAX feature, which records the minimum and maximum measurements over a period, and a data hold function that freezes the current reading on the display. These features are particularly useful for tracking fluctuations and maintaining records during extended testing sessions.

The AVO410 also excels in detailed component testing. Its continuity function not only provides visual and audible indications of connectivity but also supports forward and reverse bias testing of diodes and semiconductor junctions, essential for troubleshooting electronic circuits.

Related Product

The Megger AVO210 is a similar product to the Megger AVO410, as both are part of the Megger AVO200 series of digital multimeters. These multimeters are designed for professionals in the electrical industry, offering a range of advanced features and reliable performance.

Megger AVO410 specifications:

• Display 6000 counts update 1.5/sec.
• Polarity indication Automatic, positive implied, negative indicated
• The over-range indication “OL” or “-OL”
• Low battery indication is Displayed when the battery voltage drops below the operating voltage
• Auto power off Approx 10 minutes
• Operating ambient Non-condensing ≤10 °C, 11 °C ~ 30 °C (≤80% R.H) 31 °C ~ 40 °C (≤75% R.H), 41 °C ~ 50 °C (≤45% R.H)
• Storage temperature -20 ºC to 60 ºC, 0 to 80% R.H. when the battery is removed from the meter
• Temperature coefficient 0.15 x (Spec.Acc’y) / ºC, <18 ºC or >28 ºC
• Safety The instrument complies with IEC61010 CATIV 600 V
• Power requirements Standard 9 V battery PP3, NEDA 1604, IEC6F22, JIS006P
• Battery life Alkaline 300 hours
• Dimensions (W x H x D) 76 mm x 158 mm x 38 mm without holster – 82 mm x 164 mm x 44 mm with holster
• Weight 522 g
