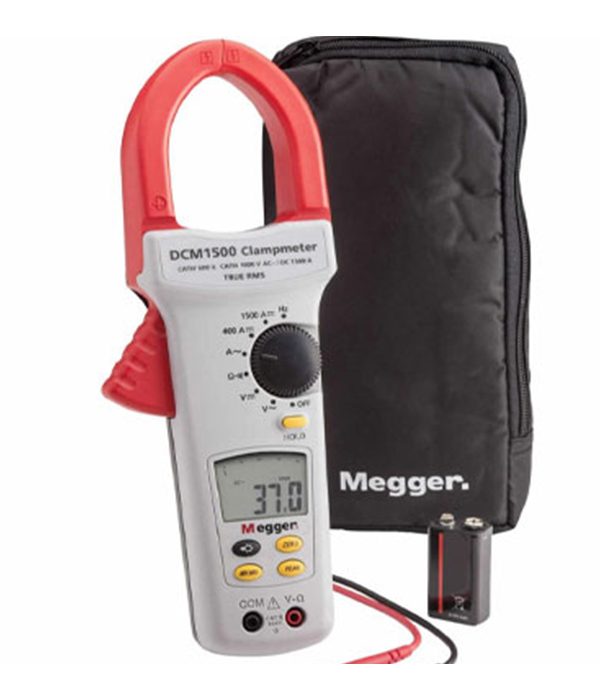

Megger DCM1500-1500 A TRMS Clamp Meter

Megger DCM1500-1500 A TRMS CLAMP METER key features:

  • DC and AC current up to 1500 A
  • True RMS measurement for greater accuracy
  • Large jaw size safely assists with uninsulated conductor measurements
  • 750 Vac and 1000 Vdc
  • Resistance , continuity and frequency
  • Peak, min/max and data-hold functions
(1 customer review)
SKU: 3749

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

11 People watching this product now!

Megger DCM1500-1500 A TRMS Clamp Meter

The Megger DCM1500-1500 A TRMS Clamp Meter is a highly versatile and reliable tool designed for professionals in the field of electrical installation, maintenance, fault-finding, and monitoring of extensive AC or DC systems. Capable of handling currents up to 1500 A and voltage measurements up to 750 VAC and 1000 VDC, this clamp meter is an indispensable instrument for technicians working with large electrical systems.

One of the key advantages of the DCM1500 is its True RMS measurement capability. Unlike average-sensing meters, the DCM1500 uses True RMS technology to provide precise readings regardless of waveform distortions that often occur in modern electrical loads. This accuracy is critical in applications involving non-linear loads, ensuring that the measurements are both reliable and consistent.

The DCM1500 is not only robust in functionality but also in its build. It is safety rated to IEC 61010-1 CAT IV 600 V and has been drop-tested to withstand impacts from 1.2 meters, making it suitable for tough industrial environments. The design includes a large jaw size which facilitates safe measurements on uninsulated conductors while maintaining a safe working distance, thanks to the tactile barrier below the jaws. However, it is always recommended to use additional personal protection when measuring live conductors.

Megger DCM1500-1500 A TRMS Clamp Meter Specifications:

  • Battery Life :100 hours.
  • Operating Range/Humidity :0 °C – 30 °C (≤ 80% RH) 30 °C – 40 °C (≤ 75% RH) 40 °C – 50 °C (≤ 45% RH).
  • Max Conductor Size :51mm.
  • Safety: IEC 61010-1 CAT IV 600V For use on uninsulated conductors.
Related Product

If you want to check another similar product click the link below:

5
1 review
1
0
0
0
0

1 review for Megger DCM1500-1500 A TRMS Clamp Meter

Clear filters
  1. Gaurav

    Exellent

    0
    0
Add a review

Brand

Megger

Megger

Megger since 1889 is a leading global premium manufacturer of measurement and testing technology. Megger top priority has always been to make your everyday work easier and safer. As such, insulation testers, micro-ohmmeters, and multimeters are among the long line of Megger inventions, making this brand one of the pioneers in the electrical industry. Megger products combine many years of experience and the valued feedback from our global users with the inventiveness and conscientiousness of our product developers. In Germany, we manufacture at three sites, Aachen, and Baunach near Bamberg and Radeburg near Dresden. Other manufacturing locations are based in Sweden, England, and America.

megger

catalog

Data Sheet

Specifications

Technical Specifications for Megger DCM1500 Clamp Meter
Current Measuring Range (AC) 0.1 – 1500 A
Current Measuring Range (DC) 0.1 – 1500 A
Electrical Measurement Category CAT IV 600 V
Max Resistance Reading 400Ω
Voltage Measuring Range (AC) 100 mV – 750 V
Voltage Measuring Range (DC) 100 mV – 1000 V
Battery Life 100 hours
Operating Range/Humidity 0 °C – 30 °C (≤ 80% RH)
30 °C – 40 °C (≤ 75% RH)
40 °C – 50 °C (≤ 45% RH)
Max Conductor Size 51 mm
Safety IEC 61010-1 CAT IV 600V
For use on uninsulated conductors
