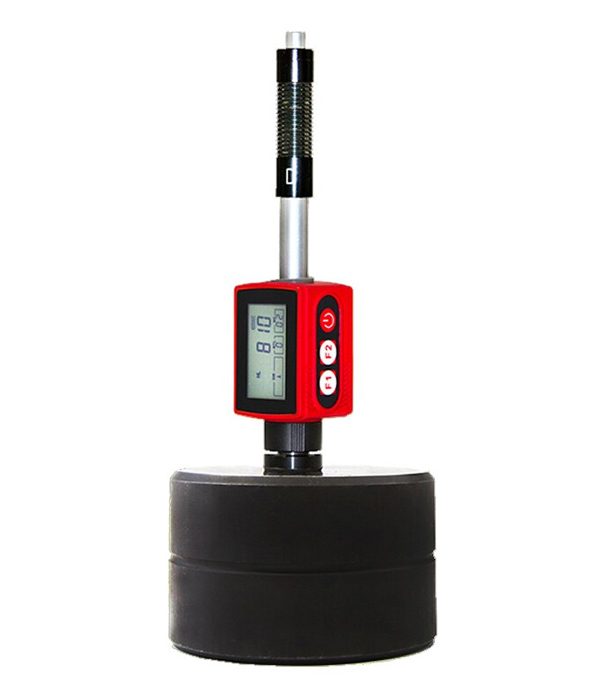

Mitech MH100 Leeb Hardness Tester

Short Description:

Mitech MH100 can measure the Leeb hardness of all metallicmaterials.High-contrast Segment LCD ,easy to use

Support Steel ,when using D sensor to test steel,Mitech MH100 can show HB directly.

Software calibration automatically.

Product purchase
SKU: 35038 Categories: ,
Brand:Mitech

Call for Best Price In UAE 00971(04) 447 6031 00971(04) 344 9868

10 People watching this product now!
Terms of sending goods ›
  •  In-stock items are delivered within 2 business days.
  • We are not Supporting COD Payments Terms Outside UAE

Mitech MH100 Leeb Hardness Tester:

Product Overview

The Mitech MH100 series of pocket hardness meters,also referred to as pen-type hardness testers,are based on the Leeb hardness measuring principle and allow for quick and simple on-site testing of a variety of metal materials. They also support free conversion between the Richter, Brinell, and Rockwell hardness scales, among others.widely employed in inspection, specialized machinery, permanent assembly, failure analysis, and other sectors involving metal processing and manufacturing. Particularly ideal for assessing the hardness of big pieces and non-removable site components.

Working Principle

The impact body’s impact and rebound velocities are used to determine the energy quotient, which is expressed in the hardness unit HL. Because it bounces back from harder samples more quickly than from softer ones, the energy quotient, which is defined as 1000Vr/Vi, is higher.   HL=1000×Vr/ Vi

Where:

HL. Leeb hardness value

Vr . Rebound velocity of the impact body

Vi. Impact velocity of the impact body

Working Conditions

Working temperature:- 10℃~+50℃;

Storage temperature:-30℃~+60℃

Relative humidity: ≤90%;
Vibration, a strong magnetic field, corrosive media, and heavy dust should be kept to a minimum.

Mitech MH100 Leeb Hardness Tester features:

  • Mitech MH100 can measure the Leeb hardness of all metallic materials.
  • Easy to operate, high-contrast segment LCD Support Steel may immediately display HB while testing steel with a D sensor.
  • Automatic software calibration.
  • Measuring range:(170~960)HLD
  • Resolution Accuracy:±6HLD
  • Communication storage:100 measurement series.(Relative to average times 32~1) USB
  • Working time:about 200 hours(with default brightness)
  • Main unit weight:80g
  • Dimensions:148*33*28mm

Mitech MH100 Leeb Hardness Tester specifications:

  • Measuring range:(170~960)HLD
  • Impact directio: vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify
  • Error Impact device D:±6HLD
  • Repeatability Impact device D:±6HLD
  • Material : Steel and cast steel,Cold work tool steel,Stainless steel,Grey cast iron,Nodular cast iron,Cast alum
  • Hardness Scale: HL、HB、HRB、HRC、HRA、HV、HS
  • Min depth for harden layer: D≥0.8mm;C≥0.2mm
  • Display: High-contrast Segment LCD
  • Storage: up to 100 groups(Relative to average times 32~1)
  • Calibration: SIngle point calibration
  • Data printing: Connect PC to print
  • Working voltage: 3.7V(Built-in lithium polymer battery)
  • Power supply: 5V/500mA;recharge for 2.5~3.5 h
  • Standby period: About 200h(without backlight)
  • Communication: interface USB1.1
  • Working language: Chinese
  • Shell meterial: ABS engineering plastic
  • Dimensions: 148mm×33mm×28 mm
  • Total weight: 4.0KG
  • PC software: Yes
Error And Repeatability

D ±6 HLD

Hardness (Range/Resolution/Accuracy)

(170~960)HLD

Hardness Scales

HL、HB、HRB、HRC、HRA、HV、HS

Impact direction

vertically downward, oblique, horizontal, oblique, vertical upward, automatically identify

Dimensions

148mm×33mm×28 mm

Weight

4.0KG

Power

3.7V(Built-in lithium polymer battery)

Other features of the device

Communication interface: USB1.1

,

Storage: up to 100 groups(Relative to average times 32~1)

,

Working language: Chinese

Calibration

Single point calibration

Datasheet
