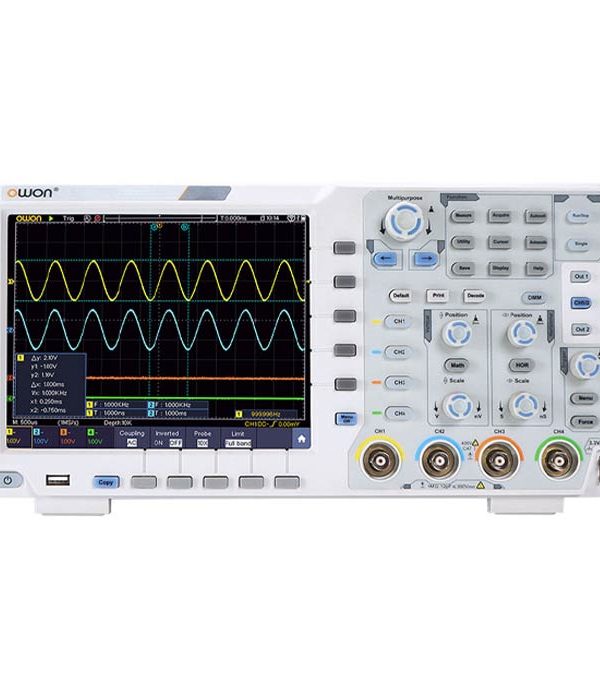

OWON XDS3064E 4CH 8/14bit Touchscreen Digital Oscilloscope

The OWON XDS3064E 4CH 8/14bit Touchscreen Digital Oscilloscope is an embodiment of precision, versatility, and innovation. From its impressive bandwidth and high-resolution ADC to its multifunction capabilities and intuitive touchscreen interface, this device elevates the standards of electronics testing and analysis. Whether for professionals working on intricate projects or researchers seeking comprehensive insights, the XDS3064E stands as a reliable companion. To embark on a journey of accurate measurements and insightful discoveries, explore the offerings of the mme.ae website and embrace the power of the OWON XDS3064E.

SKU:65400

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

17People watching this product now!

OWON XDS3064E 4CH 8/14bit Touchscreen Digital Oscilloscope

When it comes to electronics testing and analysis, it is crucial to have access to precise and versatile equipment. The OWON XDS3064E 4CH 8/14bit Touchscreen Digital Oscilloscope is an exceptional example of technological innovation that can be purchased through the mme.ae website. This oscilloscope is designed to deliver a high level of performance with its impressive bandwidth, high-resolution ADC, and comprehensive features, making it a valuable tool for measurement and analysis. Whether you are a professional in the electronics industry or a hobbyist, the OWON XDS3064E can help you achieve your goals with greater accuracy and efficiency.

Unlocking Unprecedented Performance

Fujian Lilliput Optoelectronics Technology Co., Ltd presents the OWON XDS3064E as a powerful addition to their XDS3000-E series. This remarkable oscilloscope offers a bandwidth range from 60MHz to 200MHz and boasts a sample rate of 1GS/s, ensuring accurate signal capture and analysis. It features an 8-bit or 14-bit high-resolution ADC, catering to the diverse needs of engineers and researchers. With a maximum record length of 40M, the XDS3064E can store extensive waveform data for in-depth investigations.

Exceptional Visuals and Functionality

The OWON XDS3064E is equipped with an 8-inch 800 x 600 high-resolution LCD, guaranteeing clear and precise waveform visualization. This oscilloscope even offers a multi-touch screen option for intuitive navigation and interaction with the device’s functionalities. Incorporating low background noise ensures that signals are captured with minimal interference, contributing to the accuracy of measurements.

A Multifaceted Tool for Professionals

This versatile oscilloscope is not limited to capturing waveforms alone. It seamlessly transforms into a multi-function mobile tester, integrating capabilities such as a signal generator, multimeter, data logger, frequency counter, and decoder. This comprehensive tool is a boon for engineers seeking a single device to address diverse testing requirements. Furthermore, it supports Li-ion battery use for floating tests, enhancing its usability across various setups and environments.

Diverse Models and Comprehensive Features

The OWON XDS3064E is just one of the models in the XDS3000-E series, catering to different bandwidth and sample rate needs. Its trigger types range from Edge and Pulse to Logic and CAN, ensuring compatibility with a wide range of signals. The oscilloscope supports various trigger modes including Auto, Normal, and Single, granting users flexibility in their testing approaches.

OWON XDS3064E 4CH 8/14bit Touchscreen Digital Oscilloscope Specifications:

  • Bandwidth: 60MHz
  • Sample Rate: 1GS/s
  • Vertical Resolution (A/D): 8 bits
  • Record length: 40M
  • Waveform Refresh Rate: 45,000 wfms/s
  • Horizontal Scale (s/div): 2ns/div – 1000s/div, step by 1 – 2 – 5
  • Channel: 4
  • Display: 8″ color LCD, 800 x 600 pixels display
  • Sample Rate / Relay Time Accuracy: ±2.5 ppm
  • Input Coupling: DC, AC, GND
  • Vertical Sensitivity: 1mV/div – 10V/div (at input)
  • Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
  • Bus Decoding(optional): I2C, SPI, RS232, CAN
  • Trigger Mode: Auto, Normal, and Single
  • Vertical Range: ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div)
  • Waveform Math: +, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
  • Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
  • Frequency Counter: available
  • Power Supply: 100V – 240V AC, 50/60Hz, CAT II
  • Fuse: 2A, T class, 250V
  • Battery (optional): 3.7V, 13200mA
  • Dimension (W x H x D): 340mmx177mmx90mm
  • Optional Module / Function:
  • VGA: VGA+AV port
  • WIF: Wifi
  • AWG: arb waveform generator
  • DMM: digital multimeter
  • MTS: Touch screen(capacitor-type)
  • Optional Decoding Kit:
  • RS232
  • SPI
  • I2C
  • CAN
  • Accessories: Power Cord, CD Rom, Quick Guide, USB Cable, Probe, Probe Adjust, Capacitance Ext Module (optional), Multimeter Lead (optional), Q9 (optoinal), Soft Bag (optional), Battery (optional)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “OWON XDS3064E 4CH 8/14bit Touchscreen Digital Oscilloscope”

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Specifications

specifications
AC Current(Range/Resolution/Accuracy)

400mA: ±(2%±1digit), 40mA: ±(1.5%±3digit), 4A, 10A: ±(3%±3digit)

DC Current(Range/Resolution/Accuracy)

40mA, 400mA: ±(1.5%±1 digit), 4A, 10A: ±(3%±3digit)

DC Voltage(Range/Resolution/Accuracy)

400mV, 4V, 40V, 400V, 1000V: ±(1%±1digit)

Resistance(Range/Resolution/Accuracy)

400Ω: ±(1%±3digit), 40MΩ: ±(1.5%±3digit), 4KΩ~4MΩ: ±(1%±1digit)

Capacitance(range/resolution/accuracy)

51.2nF – 100uF: ±(3%±3 digits)

Frequency (Range/Resolution/Accuracy)

40Hz – 400Hz

Oscilloscopes
Bandwidth

60MHz

Channels

4

Max Input Voltage

400 V (DC + AC Peak)

Sample rate

1GS/s

Trigger type

Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)

Vertical Resolution

8bits

Vertical Sensitivity

1mV/div – 10V/div (at input)

Mechanical and General Specifications
Dimensions

340 mm × 177 mm ×90 mm (L*H*W)

Weight

Approx. 2.6 kg (without accessories)

Power

100V – 240 VACRMS, 50/60 Hz, CAT Ⅱ

Accessories

Power Cord, CD Rom, Quick Guide, USB Cable, Probe, Probe Adjust, Capacitance Ext Module (optional), Multimeter Lead (optional), Q9 (optoinal), Soft Bag (optional), Battery (optional)
