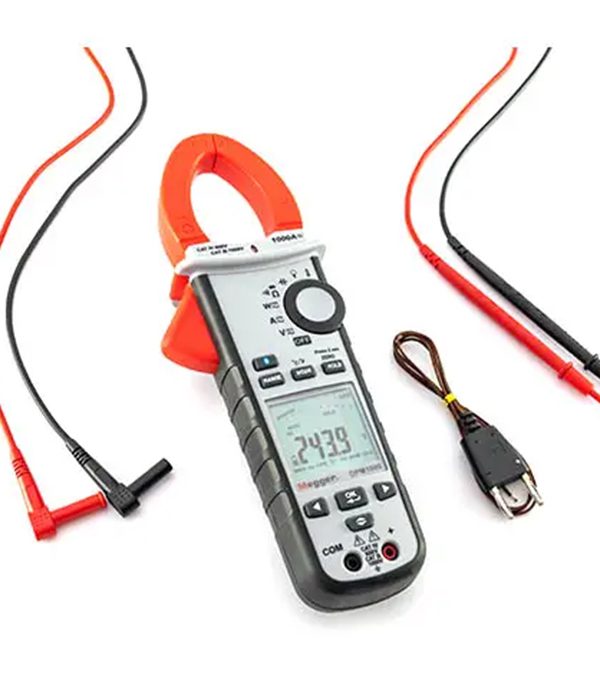

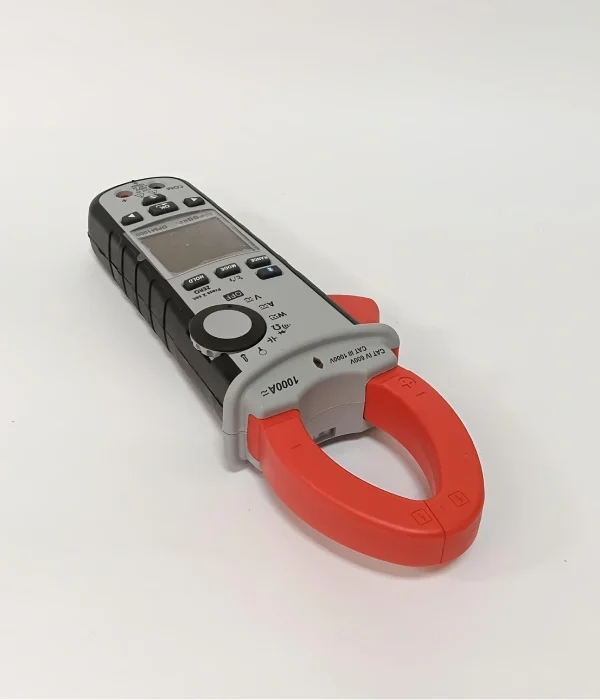

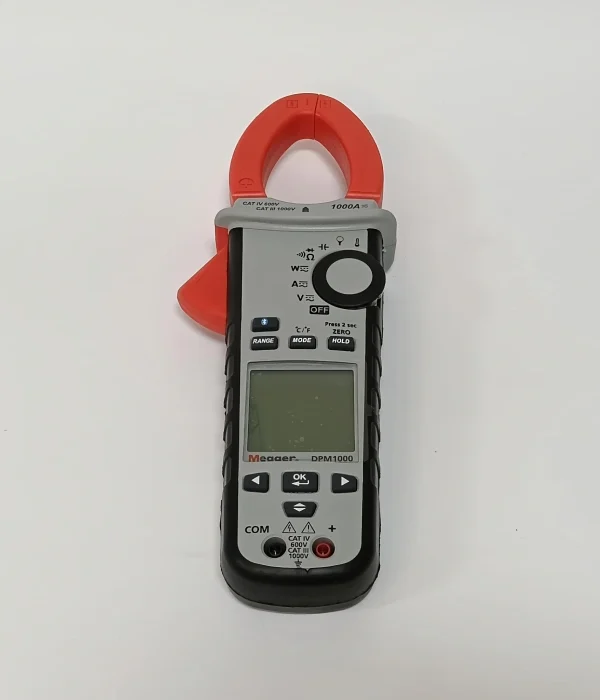

Megger DPM1000-Power Clamp Meter

Megger DPM1000-POWER CLAMP METER key features:

  • Combines a power meter with a harmonics meter & data logger
  • Measure AC/DC Voltage to 1000V
  • Measure AC/DC Current to 1000A
  • Jaw conductor size 40mm
  • Watt measurement to 1MW
  • Harmonic measurement & distortion
  • Handheld, ergonomic design
  • Supplied with thermocouple probe
  • Measure Temperature to 10000˚C
  • Features True RMS
  • Provides single & 3-phase rotation indication
  • Capable of frequency measurement
  • Capable of capacitance measurement
  • Diode test included
  • Power factor measurement
  • Inrush peak current
  • Resistance up to 100kΩ
(1 customer review)
SKU: 3735

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

11 People watching this product now!

Megger DPM1000-Power Clamp Meter

The Megger DLRO600 Micro-ohmmeter stands as a powerhouse in the realm of electrical testing, offering an impressive suite of features designed for modern electrical diagnostics. This cutting-edge device simplifies complex testing tasks, providing both AC and DC voltage measurements up to 1000 V and current measurements up to 1000 A, making it versatile for a wide range of applications. With its capability to handle true RMS measurements, the DLRO600 ensures accuracy when dealing with non-linear loads, making it a reliable tool for testing and maintenance.

One of the standout features of the DLRO600 is its Bluetooth connectivity, which allows seamless link-up with the Megger Link app. This feature enhances user experience by enabling easy data management and real-time sharing of results during field operations. The device also supports continuity testing with an audible beeper, and includes a data hold function along with Min-Max and Peak Hold features to record fluctuations during testing periods.

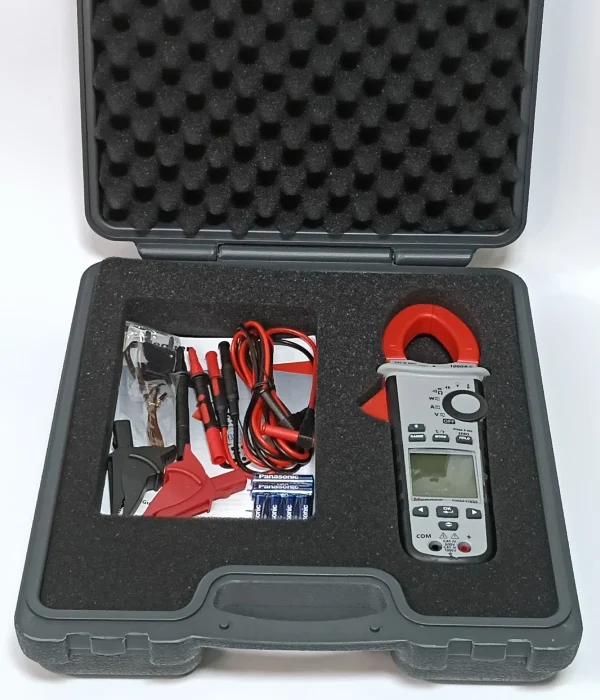

For added functionality, the DLRO600 includes phase rotation indication and a bright LED torch, improving usability in low-light conditions. The robust design is encapsulated with a CAT IV 600 V rating, ensuring safety during operations on high-energy systems. The meter is also equipped with a carrying case and holster/pouch, promoting portability and protection.

Megger DPM1000-Power Clamp Meter Specifications:

ACA Range (100A – 1000A)

  • Resolution: 0.01A
  • Basic Accuracy: ±(1.5% +5d) at 50-500Hz
  • Conversion Type: AC+DC True-RMS

ACV Range (100V – 1000V)

  • Resolution: 0.01V
  • Basic Accuracy: ±(1.5% +5d) at 50Hz-500Hz
  • Input Impedance: 3.5MΩ
  • Overload Protection: 1000V rms

DCA Range (100A – 1000A)

  • Resolution: 0.01A
  • Basic Accuracy: ±(1.5% +5d)

DCV Range

  • Resolution: 0.01V
  • Basic Accuracy: ±(0.7% +2d)
  • Input Impedance: 3.5MΩ)
  • Overload Protection: 1000V rms

Wat (10KW – 1MW)

  • Resolution: 1W

Power Factor (-1.00 – 1.00)

  • Resolution: 0.01
  • Basic Accuracy: ±5d
Related Products

Here, we are referring to some products as related products

5
1 review
1
0
0
0
0

1 review for Megger DPM1000-Power Clamp Meter

Clear filters
  1. Kimberly

    This is a great meter in terms of form and function

    0
    0
Add a review

Brand

Megger

Megger

Megger since 1889 is a leading global premium manufacturer of measurement and testing technology. Megger top priority has always been to make your everyday work easier and safer. As such, insulation testers, micro-ohmmeters, and multimeters are among the long line of Megger inventions, making this brand one of the pioneers in the electrical industry. Megger products combine many years of experience and the valued feedback from our global users with the inventiveness and conscientiousness of our product developers. In Germany, we manufacture at three sites, Aachen, and Baunach near Bamberg and Radeburg near Dresden. Other manufacturing locations are based in Sweden, England, and America.

megger

Data Sheet

Data Sheet

Specifications

Parameter Range Resolution Basic Accuracy Additional Specs
AC Current (ACA) 100A – 1000A 0.01A ±(1.5% +5d) at 50-500Hz AC+DC True-RMS Conversion
AC Voltage (ACV) 100V – 1000V 0.01V ±(1.5% +5d) at 50Hz-500Hz Input Impedance: 3.5MΩ
Overload Protection: 1000V rms
DC Current (DCA) 100A – 1000A 0.01A ±(1.5% +5d)
DC Voltage (DCV) 0.01V ±(0.7% +2d) Input Impedance: 3.5MΩ
Overload Protection: 1000V rms
Power (W) 10KW – 1MW 1W
Power Factor -1.00 – 1.00 0.01 ±5d
